address_translation.c File Reference

#include <assert.h>
#include "debug.h"
#include "xil_printf.h"
#include "memory_map.h"

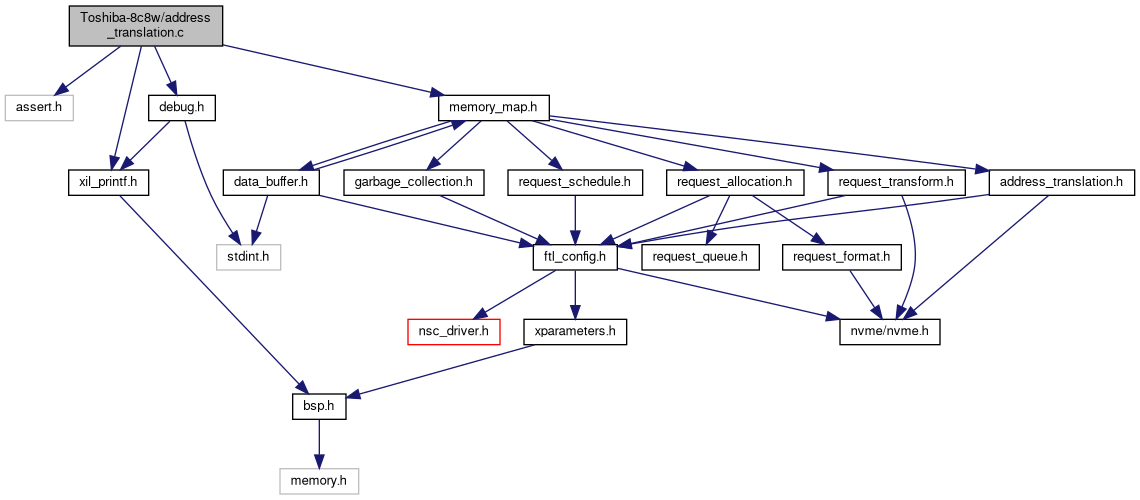

Include dependency graph for address_translation.c:

Go to the source code of this file.

Functions
void	InitAddressMap ()
	Initialize the translation related maps. More...
void	InitSliceMap ()
	Initialize Logical and Virtual Slick Map. More...
void	RemapBadBlock ()
	Try to remap the bad blocks in the main block space. More...
void	InitDieMap ()
	Reset the free block list of each die. More...
void	InitBlockMap ()
	Create V2P table and free block list. More...
void	InitCurrentBlockOfDieMap ()
	Get a default free block for each die. More...
void	ReadBadBlockTable (unsigned int tempBbtBufAddr[], unsigned int tempBbtBufEntrySize)
	Read the pages that should contain the bad block table. More...
void	FindBadBlock (unsigned char dieState[], unsigned int tempBbtBufAddr[], unsigned int tempBbtBufEntrySize, unsigned int tempReadBufAddr[], unsigned int tempReadBufEntrySize)
	Build the bbt for those dies whose bbt doesn't exist. More...
void	SaveBadBlockTable (unsigned char dieState[], unsigned int tempBbtBufAddr[], unsigned int tempBbtBufEntrySize)
	Persist the newly created bbt for those dies whose bbt not exists. More...
void	RecoverBadBlockTable (unsigned int tempBufAddr)
	Read the bbt from flash and re-create if not exists. More...
void	EraseTotalBlockSpace ()
	Erase all the blocks on user dies and wait until done. More...
void	EraseUserBlockSpace ()
	Erase all the non-bad main blocks on user dies and wait until done. More...
void	InitBlockDieMap ()
	Build the bad block table and V2P block mapping of each user die. More...
unsigned int	AddrTransRead (unsigned int logicalSliceAddr)
	Get the virtual slice address of the given logical slice. More...
unsigned int	AddrTransWrite (unsigned int logicalSliceAddr)
	Assign a new virtual (physical) page to the specified logical page. More...
unsigned int	FindFreeVirtualSlice ()
	Select a free physical page (virtual slice). More...
unsigned int	FindFreeVirtualSliceForGc (unsigned int copyTargetDieNo, unsigned int victimBlockNo)
unsigned int	FindDieForFreeSliceAllocation ()
	Update and get the die number to serve the next write request. More...
void	InvalidateOldVsa (unsigned int logicalSliceAddr)
	Invalidate the specified virtual page. More...
void	EraseBlock (unsigned int dieNo, unsigned int blockNo)
	Erase the specified block of the specified die and discard its LSAs. More...
void	PutToFbList (unsigned int dieNo, unsigned int blockNo)
	Append the given virtual block to the free block list of its die. More...
unsigned int	GetFromFbList (unsigned int dieNo, unsigned int getFreeBlockOption)
	Pop the first block in the free block list of the specified die. More...
void	UpdatePhyBlockMapForGrownBadBlock (unsigned int dieNo, unsigned int phyBlockNo)
	Mark the given physical block bad block and update the bbt later. More...
void	UpdateBadBlockTableForGrownBadBlock (unsigned int tempBufAddr)
	Update the bad block table and persist to the specified block. More...

Variables
P_LOGICAL_SLICE_MAP	logicalSliceMapPtr
P_VIRTUAL_SLICE_MAP	virtualSliceMapPtr
P_VIRTUAL_BLOCK_MAP	virtualBlockMapPtr
P_VIRTUAL_DIE_MAP	virtualDieMapPtr
P_PHY_BLOCK_MAP	phyBlockMapPtr
P_BAD_BLOCK_TABLE_INFO_MAP	bbtInfoMapPtr
unsigned char	sliceAllocationTargetDie
unsigned int	mbPerbadBlockSpace

Function Documentation

AddrTransRead()

unsigned int AddrTransRead

(

unsigned int

logicalSliceAddr

)

Get the virtual slice address of the given logical slice.

Parameters

logicalSliceAddr

the logical address of the target slice.

Returns

unsigned int the virtual address of the target slice.

Definition at line 871 of file address_translation.c.

{
    unsigned int virtualSliceAddr;

    if (logicalSliceAddr < SLICES_PER_SSD)
    {
        virtualSliceAddr = logicalSliceMapPtr->logicalSlice[logicalSliceAddr].virtualSliceAddr;

        if (virtualSliceAddr != VSA_NONE)
            return virtualSliceAddr;
        else
            return VSA_FAIL;
    }
    else
        assert(!"[WARNING] Logical address is larger than maximum logical address served by SSD [WARNING]");
}

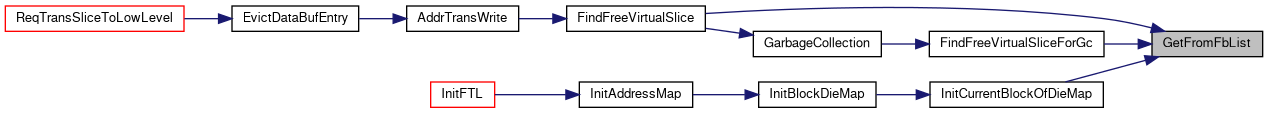

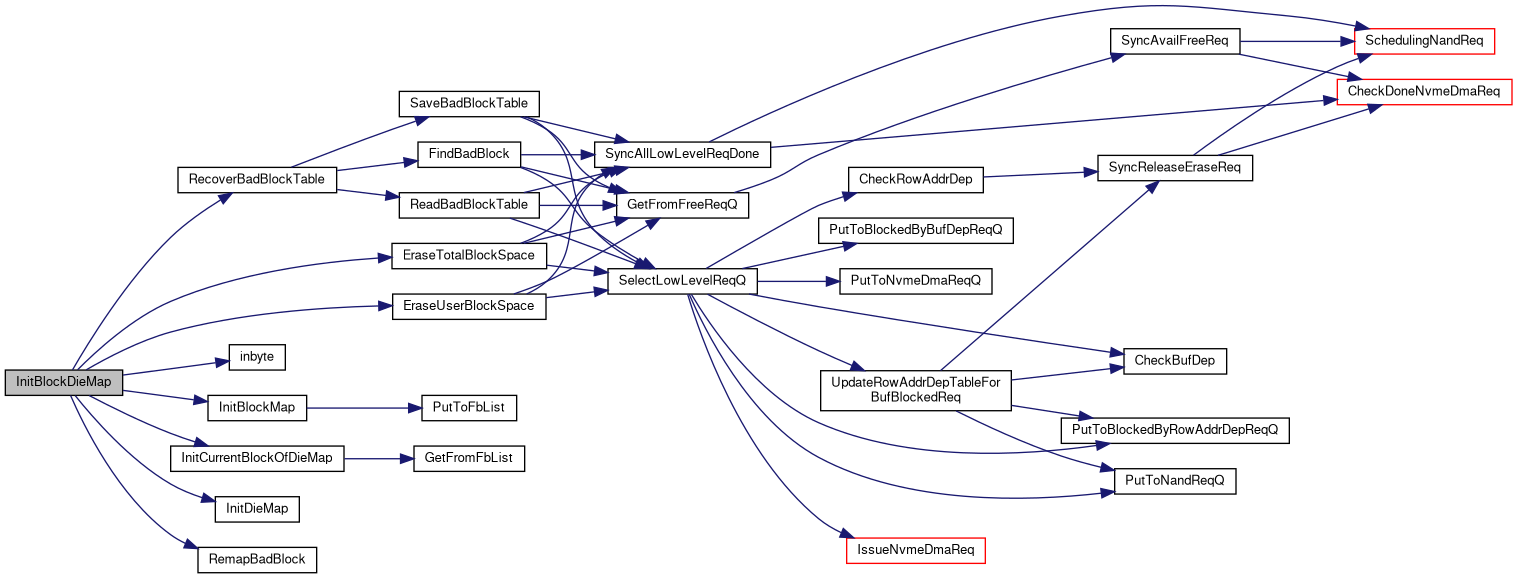

Here is the caller graph for this function:

AddrTransWrite()

unsigned int AddrTransWrite

(

unsigned int

logicalSliceAddr

)

Assign a new virtual (physical) page to the specified logical page.

Before issuing the write request, we should allocate a physical page for the specified logical page and invalidate the old physical page if it exists.

Note

In current implementation, if the target page of a write request is not empty, a read request on the target page will be issued automatically before the write request, therefore, we don't have to handle data migration in this function.

See also

ReqTransSliceToLowLevel().

Parameters

logicalSliceAddr

the logical address of the target slice.

Returns

unsigned int the renewed virtual slice address for the given logical slice.

Definition at line 903 of file address_translation.c.

{
    unsigned int virtualSliceAddr;

    if (logicalSliceAddr < SLICES_PER_SSD)
    {
        InvalidateOldVsa(logicalSliceAddr);

        virtualSliceAddr = FindFreeVirtualSlice();

        logicalSliceMapPtr->logicalSlice[logicalSliceAddr].virtualSliceAddr = virtualSliceAddr;
        virtualSliceMapPtr->virtualSlice[virtualSliceAddr].logicalSliceAddr = logicalSliceAddr;

        return virtualSliceAddr;
    }
    else
        assert(!"[WARNING] Logical address is larger than maximum logical address served by SSD [WARNING]");
}

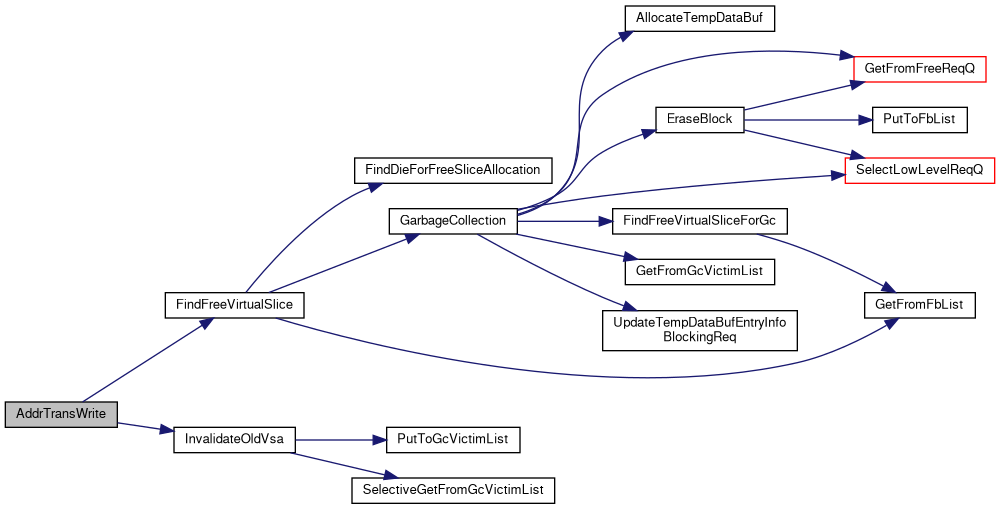

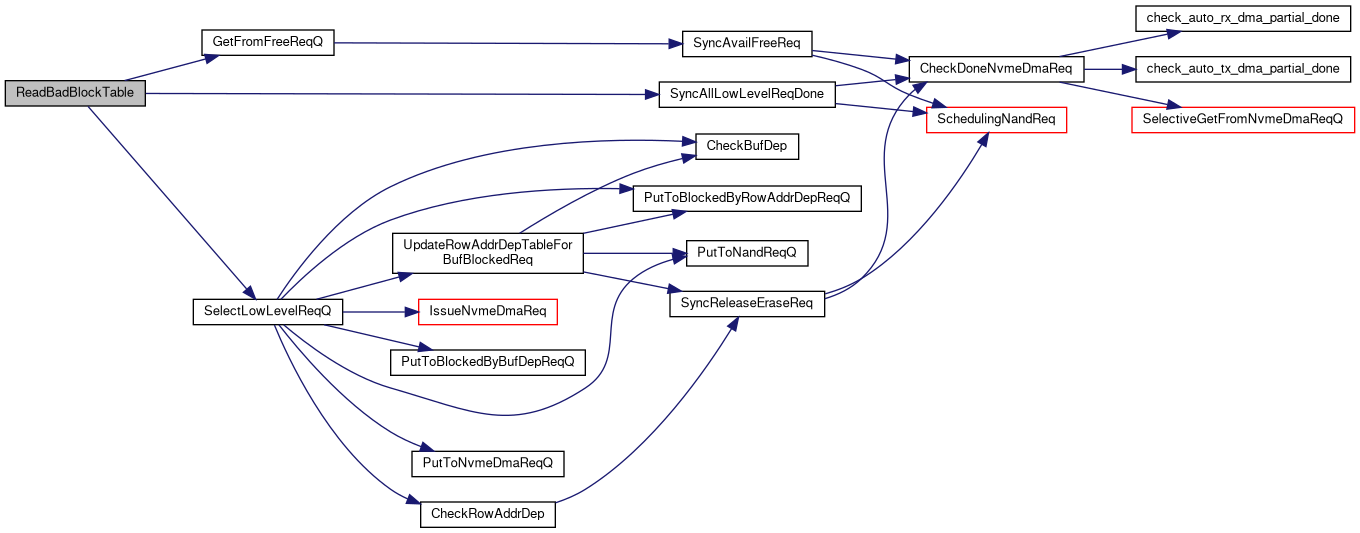

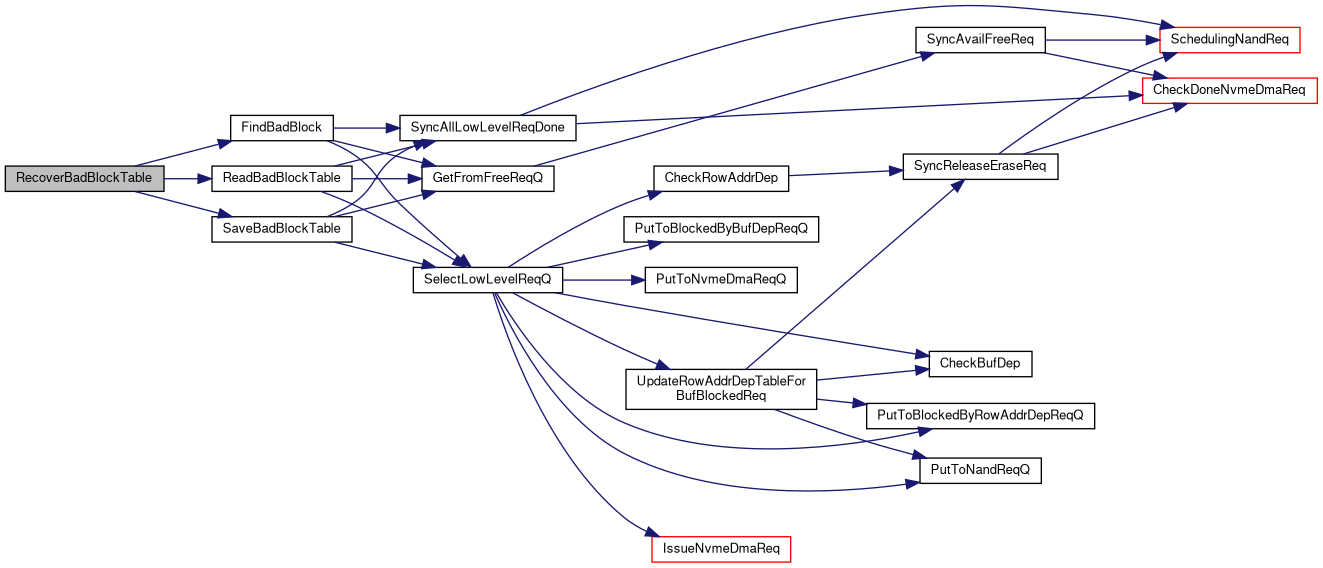

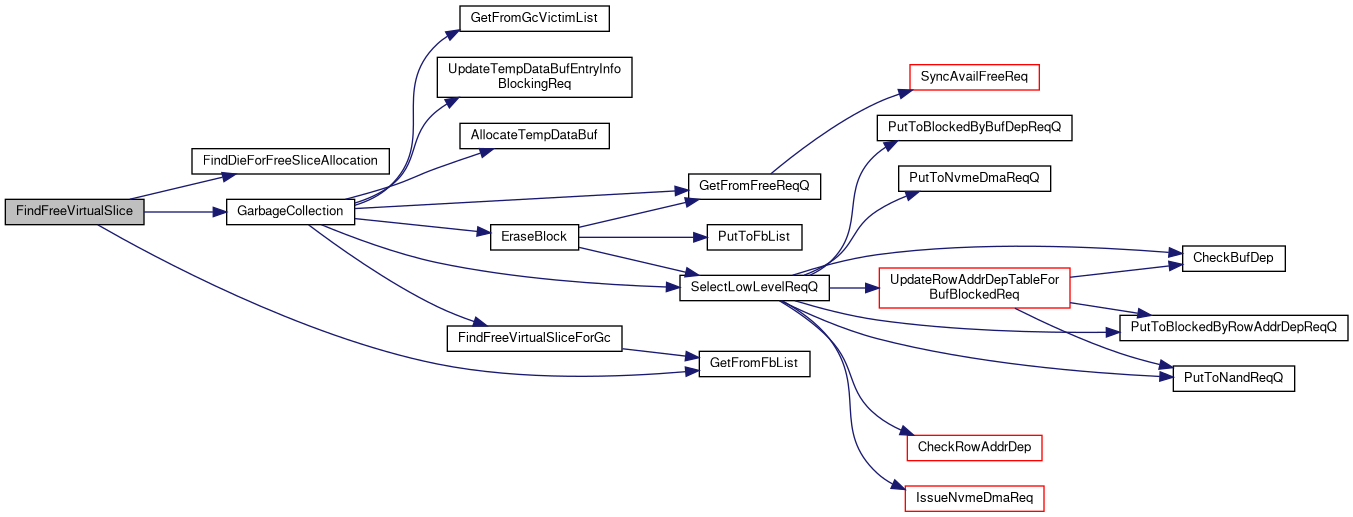

Here is the call graph for this function:

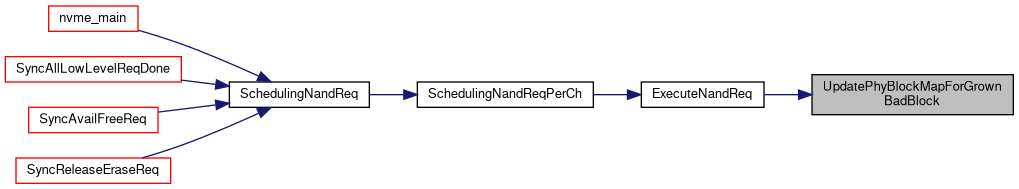

Here is the caller graph for this function:

EraseBlock()

void EraseBlock	(	unsigned int	dieNo,
		unsigned int	blockNo
	)

Erase the specified block of the specified die and discard its LSAs.

This function will:

• Send a ERASE request to erase the specified block
• Move the specified block to free block list

• Discard all the logical slice addresses of the origin block

  Todo:

  programmedPageCnt

Note

The specified block may not be invalidated immediately.

Parameters

dieNo	the die number of the specified block.
blockNo	the block number on the specified die.

Definition at line 1122 of file address_translation.c.

{
    unsigned int pageNo, virtualSliceAddr, reqSlotTag;

    reqSlotTag = GetFromFreeReqQ();

    reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
    reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_ERASE;
    reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_VSA;
    reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_NONE;
    reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_CHECK;
    reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_MAIN;
    reqPoolPtr->reqPool[reqSlotTag].nandInfo.virtualSliceAddr     = Vorg2VsaTranslation(dieNo, blockNo, 0);
    reqPoolPtr->reqPool[reqSlotTag].nandInfo.programmedPageCnt =
        virtualBlockMapPtr->block[dieNo][blockNo].currentPage;

    SelectLowLevelReqQ(reqSlotTag);

    // block map indicated blockNo initialization
    virtualBlockMapPtr->block[dieNo][blockNo].free = 1;
    virtualBlockMapPtr->block[dieNo][blockNo].eraseCnt++;
    virtualBlockMapPtr->block[dieNo][blockNo].invalidSliceCnt = 0;
    virtualBlockMapPtr->block[dieNo][blockNo].currentPage     = 0;

    PutToFbList(dieNo, blockNo);

    for (pageNo = 0; pageNo < USER_PAGES_PER_BLOCK; pageNo++)
    {
        virtualSliceAddr = Vorg2VsaTranslation(dieNo, blockNo, pageNo);
        virtualSliceMapPtr->virtualSlice[virtualSliceAddr].logicalSliceAddr = LSA_NONE;
    }
}

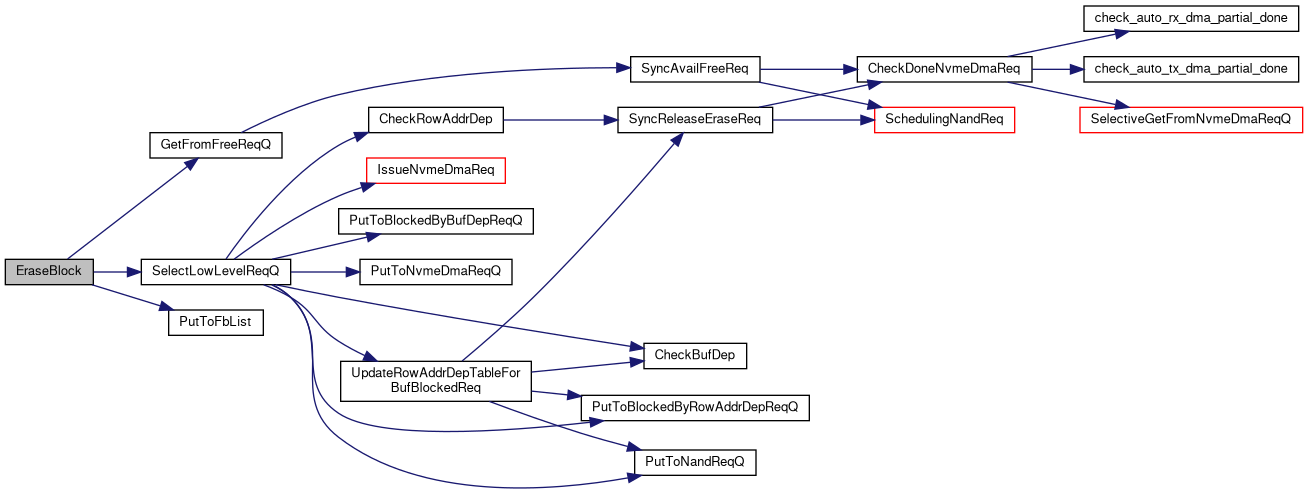

Here is the call graph for this function:

Here is the caller graph for this function:

EraseTotalBlockSpace()

void EraseTotalBlockSpace

(

)

Erase all the blocks on user dies and wait until done.

Definition at line 744 of file address_translation.c.

{
    unsigned int blockNo, dieNo, reqSlotTag;

    xil_printf("Erase total block space...wait for a minute...\r\n");

    for (blockNo = 0; blockNo < TOTAL_BLOCKS_PER_DIE; blockNo++)
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        {
            reqSlotTag = GetFromFreeReqQ();

            reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
            reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_ERASE;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_PHY_ORG;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_NONE;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_TOTAL;

            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh    = Vdie2PchTranslation(dieNo);
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay   = Vdie2PwayTranslation(dieNo);
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock = blockNo;
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage  = 0;

            SelectLowLevelReqQ(reqSlotTag);
        }

    SyncAllLowLevelReqDone();
    xil_printf("Done.\r\n");
}

Here is the call graph for this function:

Here is the caller graph for this function:

EraseUserBlockSpace()

void EraseUserBlockSpace

(

)

Erase all the non-bad main blocks on user dies and wait until done.

Definition at line 777 of file address_translation.c.

{
    unsigned int blockNo, dieNo, reqSlotTag;

    xil_printf("Erase User block space...wait for a minute...\r\n");

    for (blockNo = 0; blockNo < USER_BLOCKS_PER_DIE; blockNo++)
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
            if (!virtualBlockMapPtr->block[dieNo][blockNo].bad)
            {
                reqSlotTag = GetFromFreeReqQ();

                reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
                reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_ERASE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_VSA;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_NONE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_MAIN;

                reqPoolPtr->reqPool[reqSlotTag].nandInfo.virtualSliceAddr = Vorg2VsaTranslation(dieNo, blockNo, 0);

                SelectLowLevelReqQ(reqSlotTag);
            }

    SyncAllLowLevelReqDone();
    xil_printf("Done.\r\n");
}

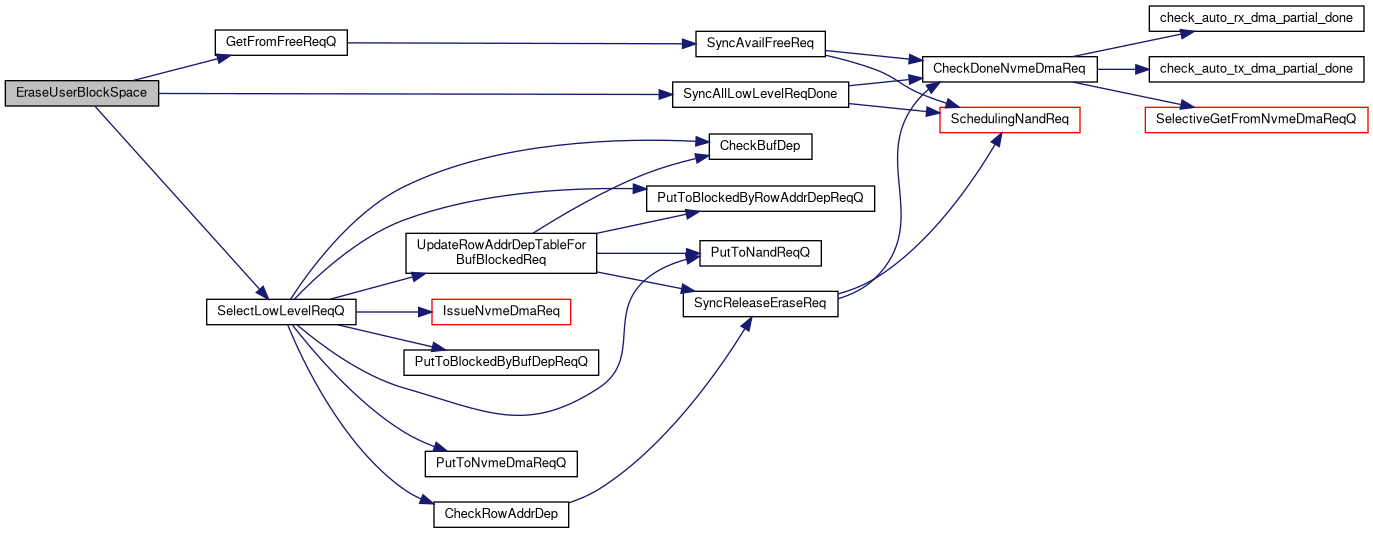

Here is the call graph for this function:

Here is the caller graph for this function:

FindBadBlock()

void FindBadBlock	(	unsigned char	dieState[],
		unsigned int	tempBbtBufAddr[],
		unsigned int	tempBbtBufEntrySize,
		unsigned int	tempReadBufAddr[],
		unsigned int	tempReadBufEntrySize
	)

Build the bbt for those dies whose bbt doesn't exist.

To determine whether a block is bad block, we should check 4 bytes in that block:

• The first byte of the data region of the first page in this block
• The first byte of the data region of the last page in this block
• The first byte of the metadata region of the first page in this block
• The first byte of the metadata region of the last page in this block

If only of the 4 bytes are not 0xFF, we can view this block as bad block.

Todo:

why check these 4 bytes, why ECC and row addr dep off?

the update in the second for is redundant, it can be merged to next part

Warning

tempBbtBufEntrySize and tempReadBufEntrySize not used

Bug:

blockChecker not initialized

Parameters

dieState	the flags that indicate whether the bbt of that die should be rebuilt.
tempBbtBufAddr	the addresses of the bbt of each die.
tempBbtBufEntrySize	the size of the data and metadata region of a page.
tempReadBufAddr	the buffer addresses for storing the pages to be read.
tempReadBufEntrySize	the size of a whole page (data + metadata + ECC).

Check all the blocks on the SSD

Note

Check multiple dies at the same time to speed up and reduce the buffer size.

Definition at line 433 of file address_translation.c.

{
    unsigned int phyBlockNo, chNo, wayNo, dieNo, reqSlotTag;
    unsigned char blockChecker[USER_DIES];
    unsigned char *markPointer0;
    unsigned char *markPointer1;
    unsigned char *bbtUpdater;

    for (phyBlockNo = 0; phyBlockNo < TOTAL_BLOCKS_PER_DIE; phyBlockNo++)
    {
        // Read the first page of the specified block of each die
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
            if (!dieState[dieNo])
            {
                blockChecker[dieNo] = BLOCK_STATE_NORMAL;

                reqSlotTag = GetFromFreeReqQ();

                reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
                reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_READ;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_ADDR;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_PHY_ORG;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEcc                = REQ_OPT_NAND_ECC_OFF;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEccWarning         = REQ_OPT_NAND_ECC_WARNING_OFF;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_TOTAL;

                reqPoolPtr->reqPool[reqSlotTag].dataBufInfo.addr = tempReadBufAddr[dieNo];

                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh    = Vdie2PchTranslation(dieNo);
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay   = Vdie2PwayTranslation(dieNo);
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock = phyBlockNo;
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage  = BAD_BLOCK_MARK_PAGE0;

                SelectLowLevelReqQ(reqSlotTag);
            }
        SyncAllLowLevelReqDone();

        // Read the last page of the specified block of each die if needed
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        {
            chNo  = Vdie2PchTranslation(dieNo);
            wayNo = Vdie2PwayTranslation(dieNo);

            if (!dieState[dieNo])
            {
                markPointer0 = (unsigned char *)(tempReadBufAddr[dieNo] + BAD_BLOCK_MARK_BYTE0);
                markPointer1 = (unsigned char *)(tempReadBufAddr[dieNo] + BAD_BLOCK_MARK_BYTE1);

                if ((*markPointer0 == CLEAN_DATA_IN_BYTE) && (*markPointer1 == CLEAN_DATA_IN_BYTE))
                {
                    reqSlotTag = GetFromFreeReqQ();

                    reqPoolPtr->reqPool[reqSlotTag].reqType               = REQ_TYPE_NAND;
                    reqPoolPtr->reqPool[reqSlotTag].reqCode               = REQ_CODE_READ;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat  = REQ_OPT_DATA_BUF_ADDR;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr       = REQ_OPT_NAND_ADDR_PHY_ORG;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEcc        = REQ_OPT_NAND_ECC_OFF;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEccWarning = REQ_OPT_NAND_ECC_WARNING_OFF;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck =
                        REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace = REQ_OPT_BLOCK_SPACE_TOTAL;

                    reqPoolPtr->reqPool[reqSlotTag].dataBufInfo.addr = tempReadBufAddr[dieNo];

                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh    = chNo;
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay   = wayNo;
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock = phyBlockNo;
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage  = BAD_BLOCK_MARK_PAGE1;

                    SelectLowLevelReqQ(reqSlotTag);
                }
                else
                {
                    pr_info("C/W[%u/%u]: bad block at PBlk %u (0x%x)", chNo, wayNo, phyBlockNo, phyBlockNo);

                    blockChecker[dieNo] = BLOCK_STATE_BAD;
                }
            }
        }

        SyncAllLowLevelReqDone();

        // determine whether these blocks are bad blocks and update the bbt
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        {
            chNo  = Vdie2PchTranslation(dieNo);
            wayNo = Vdie2PwayTranslation(dieNo);

            if (!dieState[dieNo])
            {
                markPointer0 = (unsigned char *)(tempReadBufAddr[dieNo] + BAD_BLOCK_MARK_BYTE0);
                markPointer1 = (unsigned char *)(tempReadBufAddr[dieNo] + BAD_BLOCK_MARK_BYTE1);

                if (!((*markPointer0 == CLEAN_DATA_IN_BYTE) && (*markPointer1 == CLEAN_DATA_IN_BYTE)))
                    if (blockChecker[dieNo] == BLOCK_STATE_NORMAL)
                    {

                        pr_info("C/W[%u/%u]: bad block at PBlk %u (0x%x)", chNo, wayNo, phyBlockNo, phyBlockNo);
                        blockChecker[dieNo] = BLOCK_STATE_BAD;
                    }

                // update the bbt this block
                bbtUpdater  = (unsigned char *)(tempBbtBufAddr[dieNo] + phyBlockNo);
                *bbtUpdater = blockChecker[dieNo];
                phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].bad = blockChecker[dieNo];
            }
        }
    }
}

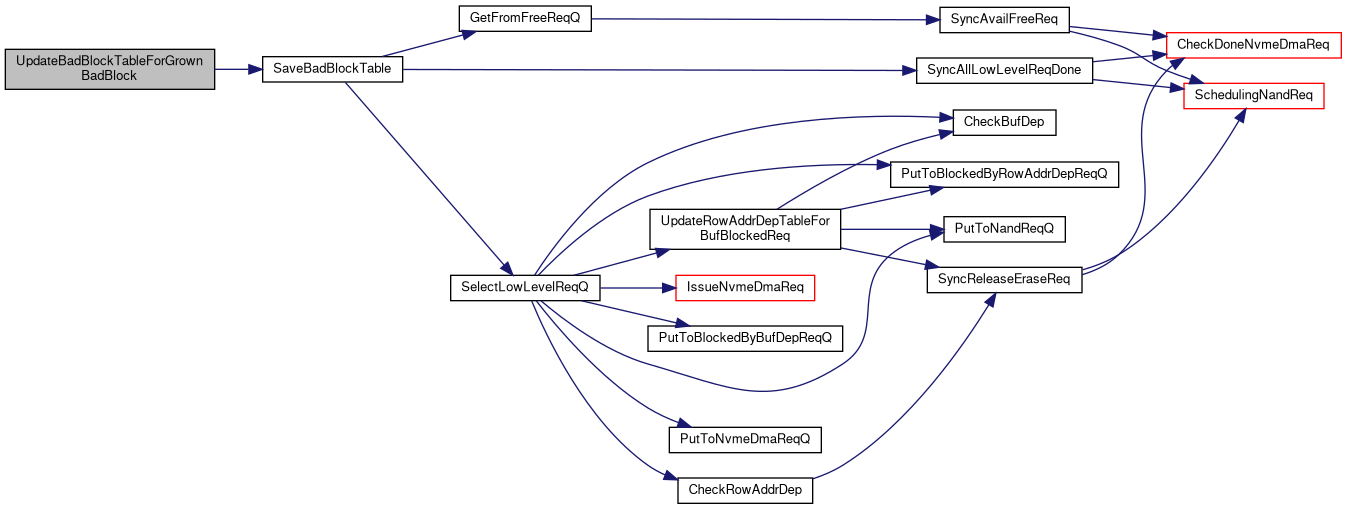

Here is the call graph for this function:

Here is the caller graph for this function:

FindDieForFreeSliceAllocation()

unsigned int FindDieForFreeSliceAllocation

(

)

Update and get the die number to serve the next write request.

To exploit the parallelism, the write request should first be interleaved on different channels to take advantage of the channel parallelism. If all the channels' same way are used, select the next way of each channel to use the die parallelism.

Warning

As paper the mentioned, may not perform well if latency largely varied.

Returns

unsigned int The target die number.

Definition at line 1051 of file address_translation.c.

{
    static unsigned char targetCh  = 0;
    static unsigned char targetWay = 0;
    unsigned int targetDie;

    targetDie = Pcw2VdieTranslation(targetCh, targetWay);

    if (targetCh != (USER_CHANNELS - 1))
        targetCh = targetCh + 1;
    else
    {
        targetCh  = 0;
        targetWay = (targetWay + 1) % USER_WAYS;
    }

    return targetDie;
}

Here is the caller graph for this function:

FindFreeVirtualSlice()

unsigned int FindFreeVirtualSlice

(

)

Select a free physical page (virtual slice).

In current implementation, the target page to serve the write request is determined by checking the following three variables:

• sliceAllocationTargetDie:

  The die where the next request should be issued to.

  To exploit the parallelism of each die, especially under write-intensive workload, the write requests will be interleaved to each die.

  Check FindDieForFreeSliceAllocation() for details.

• VIRTUAL_DIE_ENTRY::currentBlock:

  The current working block of the target die.

  Each die maintains a current working block and will select a page from the current working block of target die to serve the write request. Once all the pages of the current working block are used, the fw will select a new free block from the free block list as the new current working block of that die.

  If there the free block list of that die is empty, the fw will try to release invalid blocks by doing GC.

  Check GetFromFbList() and GarbageCollection() for the details.

• VIRTUAL_BLOCK_ENTRY::currentPage:

  The current working page of the current working block on the die.

  Current implementation just selects the free page sequentially from the current working block.

See also

VIRTUAL_DIE_ENTRY, VIRTUAL_BLOCK_ENTRY, FindDieForFreeSliceAllocation().

Warning

why the currentPage might be full after GC?

why assign dieNo before return? redundant?

Returns

unsigned int the VSA for the request.

Definition at line 965 of file address_translation.c.

{
    unsigned int currentBlock, virtualSliceAddr, dieNo;

    dieNo        = sliceAllocationTargetDie;
    currentBlock = virtualDieMapPtr->die[dieNo].currentBlock;

    // if the currently used block is full, assign a free block as new current block
    if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage == USER_PAGES_PER_BLOCK)
    {
        currentBlock = GetFromFbList(dieNo, GET_FREE_BLOCK_NORMAL);

        if (currentBlock != BLOCK_FAIL)
            virtualDieMapPtr->die[dieNo].currentBlock = currentBlock;
        else
        {
            GarbageCollection(dieNo);
            currentBlock = virtualDieMapPtr->die[dieNo].currentBlock;

            // FIXME: why need to check whether `currentPage` is full?
            if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage == USER_PAGES_PER_BLOCK)
            {
                currentBlock = GetFromFbList(dieNo, GET_FREE_BLOCK_NORMAL);
                if (currentBlock != BLOCK_FAIL)
                    virtualDieMapPtr->die[dieNo].currentBlock = currentBlock;
                else
                    assert(!"[WARNING] There is no available block [WARNING]");
            }
            else if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage > USER_PAGES_PER_BLOCK)
                assert(!"[WARNING] Current page management fail [WARNING]");
        }
    }
    else if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage > USER_PAGES_PER_BLOCK)
        assert(!"[WARNING] Current page management fail [WARNING]");

    virtualSliceAddr =
        Vorg2VsaTranslation(dieNo, currentBlock, virtualBlockMapPtr->block[dieNo][currentBlock].currentPage);
    virtualBlockMapPtr->block[dieNo][currentBlock].currentPage++;
    sliceAllocationTargetDie = FindDieForFreeSliceAllocation(); // sliceAllocationTargetDie should be updated
    dieNo                    = sliceAllocationTargetDie;        // don't merge the 2 lines
    return virtualSliceAddr;
}

Here is the call graph for this function:

Here is the caller graph for this function:

FindFreeVirtualSliceForGc()

unsigned int FindFreeVirtualSliceForGc	(	unsigned int	copyTargetDieNo,
		unsigned int	victimBlockNo
	)

Definition at line 1008 of file address_translation.c.

{
    unsigned int currentBlock, virtualSliceAddr, dieNo;

    dieNo = copyTargetDieNo;
    if (victimBlockNo == virtualDieMapPtr->die[dieNo].currentBlock)
    {
        virtualDieMapPtr->die[dieNo].currentBlock = GetFromFbList(dieNo, GET_FREE_BLOCK_GC);
        if (virtualDieMapPtr->die[dieNo].currentBlock == BLOCK_FAIL)
            assert(!"[WARNING] There is no available block [WARNING]");
    }
    currentBlock = virtualDieMapPtr->die[dieNo].currentBlock;

    if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage == USER_PAGES_PER_BLOCK)
    {

        currentBlock = GetFromFbList(dieNo, GET_FREE_BLOCK_GC);

        if (currentBlock != BLOCK_FAIL)
            virtualDieMapPtr->die[dieNo].currentBlock = currentBlock;
        else
            assert(!"[WARNING] There is no available block [WARNING]");
    }
    else if (virtualBlockMapPtr->block[dieNo][currentBlock].currentPage > USER_PAGES_PER_BLOCK)
        assert(!"[WARNING] Current page management fail [WARNING]");

    virtualSliceAddr =
        Vorg2VsaTranslation(dieNo, currentBlock, virtualBlockMapPtr->block[dieNo][currentBlock].currentPage);
    virtualBlockMapPtr->block[dieNo][currentBlock].currentPage++;
    return virtualSliceAddr;
}

Here is the call graph for this function:

Here is the caller graph for this function:

GetFromFbList()

unsigned int GetFromFbList	(	unsigned int	dieNo,
		unsigned int	getFreeBlockOption
	)

Pop the first block in the free block list of the specified die.

Note

Each die will reserve some free blocks (VIRTUAL_DIE_ENTRY::freeBlockCnt), so if the number of free blocks is less then the number of preserved blocks, BLOCK_FAIL will be returned.

Todo:

Difference between GET_FREE_BLOCK_NORMAL and GET_FREE_BLOCK_GC.

Parameters

dieNo	The target die number.
getFreeBlockOption	//TODO

Returns

unsigned int The virtual block address of the evicted block.

Definition at line 1194 of file address_translation.c.

{
    unsigned int evictedBlockNo;

    evictedBlockNo = virtualDieMapPtr->die[dieNo].headFreeBlock;

    if (getFreeBlockOption == GET_FREE_BLOCK_NORMAL)
    {
        if (virtualDieMapPtr->die[dieNo].freeBlockCnt <= RESERVED_FREE_BLOCK_COUNT)
            return BLOCK_FAIL;
    }
    else if (getFreeBlockOption == GET_FREE_BLOCK_GC)
    {
        if (evictedBlockNo == BLOCK_NONE)
            return BLOCK_FAIL;
    }
    else
        assert(!"[WARNING] Wrong getFreeBlockOption [WARNING]");

    if (virtualBlockMapPtr->block[dieNo][evictedBlockNo].nextBlock != BLOCK_NONE)
    {
        virtualDieMapPtr->die[dieNo].headFreeBlock = virtualBlockMapPtr->block[dieNo][evictedBlockNo].nextBlock;
        virtualBlockMapPtr->block[dieNo][virtualBlockMapPtr->block[dieNo][evictedBlockNo].nextBlock].prevBlock =
            BLOCK_NONE;
    }
    else
    {
        virtualDieMapPtr->die[dieNo].headFreeBlock = BLOCK_NONE;
        virtualDieMapPtr->die[dieNo].tailFreeBlock = BLOCK_NONE;
    }

    virtualBlockMapPtr->block[dieNo][evictedBlockNo].free = 0;
    virtualDieMapPtr->die[dieNo].freeBlockCnt--;

    virtualBlockMapPtr->block[dieNo][evictedBlockNo].nextBlock = BLOCK_NONE;
    virtualBlockMapPtr->block[dieNo][evictedBlockNo].prevBlock = BLOCK_NONE;

    return evictedBlockNo;
}

Here is the caller graph for this function:

InitAddressMap()

void InitAddressMap

(

)

Initialize the translation related maps.

The following tasks will be finished in the function:

• Initialize logical and virtual slice map (all entries map to NONE)
• Read/Remake the bad block table of each die
• Replace bad blocks with the reserved blocks in the same die
• Initialize V2P table and free block list
• Choose a free block as the current working block for each die

This function, only initialize the base addresses of these maps, the physical block map and some bad blocks info. The other maps will be initialized in InitBlockDieMap() and InitSliceMap(), check the two functions for further initialization.

Todo:

To initialize the physical block map,

Definition at line 82 of file address_translation.c.

{
    unsigned int blockNo, dieNo;

    logicalSliceMapPtr = (P_LOGICAL_SLICE_MAP)LOGICAL_SLICE_MAP_ADDR;
    virtualSliceMapPtr = (P_VIRTUAL_SLICE_MAP)VIRTUAL_SLICE_MAP_ADDR;
    virtualBlockMapPtr = (P_VIRTUAL_BLOCK_MAP)VIRTUAL_BLOCK_MAP_ADDR;
    virtualDieMapPtr   = (P_VIRTUAL_DIE_MAP)VIRTUAL_DIE_MAP_ADDR;
    phyBlockMapPtr     = (P_PHY_BLOCK_MAP)PHY_BLOCK_MAP_ADDR;
    bbtInfoMapPtr      = (P_BAD_BLOCK_TABLE_INFO_MAP)BAD_BLOCK_TABLE_INFO_MAP_ADDR;

    // reset physical block mapping and bad block info
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        // the blocks should not be remapped to any other blocks before remmaping
        for (blockNo = 0; blockNo < TOTAL_BLOCKS_PER_DIE; blockNo++)
            phyBlockMapPtr->phyBlock[dieNo][blockNo].remappedPhyBlock = blockNo;

        bbtInfoMapPtr->bbtInfo[dieNo].phyBlock       = 0;
        bbtInfoMapPtr->bbtInfo[dieNo].grownBadUpdate = BBT_INFO_GROWN_BAD_UPDATE_NONE;
    }

    // by default, the request start from the first die
    sliceAllocationTargetDie = FindDieForFreeSliceAllocation();

    InitSliceMap();
    InitBlockDieMap();
}

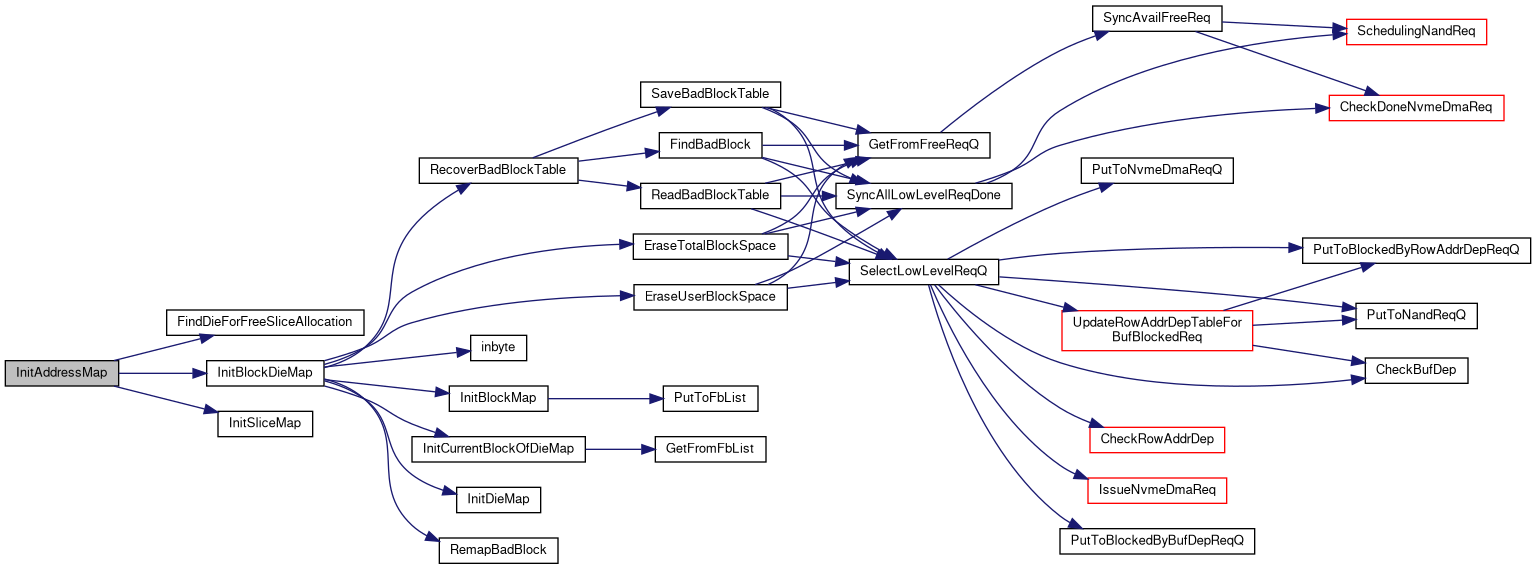

Here is the call graph for this function:

Here is the caller graph for this function:

InitBlockDieMap()

void InitBlockDieMap

(

)

Build the bad block table and V2P block mapping of each user die.

To create the V2P mapping, we have to:

1. Build the bad block table by reading or remaking the bad block table
2. Replace bad blocks with reserved blocks
3. Map virtual blocks to available physical blocks
4. Add available virtual blocks into free block list

Definition at line 815 of file address_translation.c.

{
    unsigned int dieNo;
    unsigned char eraseFlag = 1;

    xil_printf("Press 'X' to re-make the bad block table.\r\n");

    char input = inbyte();
    if (input == 'X')
    {
        xil_printf("[WARNING!!!] Start re-making bad block table\r\n");
        EraseTotalBlockSpace();
        eraseFlag = 0;
    }
    else
    {
        xil_printf("[WARNING!!!] Skip re-making bad block table\r\n");
    }

    // empty the free block list of each die
    InitDieMap();

    // read bbt from flash [, create bbt, persist new bbt to flash]
    RecoverBadBlockTable(RESERVED_DATA_BUFFER_BASE_ADDR);

    /*
     * Since the block specified by `BAD_BLOCK_TABLE_INFO_ENTRY::phyBlock` is used for
     * storing the bbt of that die, so we have to mark that block bad and let it to be
     * remapped to another block for using.
     *
     * And because we have at least one bad block on each die, the remapping process thus
     * should not be skipped.
     */
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        phyBlockMapPtr->phyBlock[dieNo][bbtInfoMapPtr->bbtInfo[dieNo].phyBlock].bad = 1;
    RemapBadBlock();

    // create V2P table and initialize free block list
    InitBlockMap();

    if (eraseFlag)
        EraseUserBlockSpace();

    InitCurrentBlockOfDieMap();
}

Here is the call graph for this function:

Here is the caller graph for this function:

InitBlockMap()

void InitBlockMap

(

)

Create V2P table and free block list.

Assign a physical blocks for each virtual block:

• The translation rule is basically static mapping, but the target physical block may be bad block, and thus point to another reserved block. Therefore, we should check the remappedPhyBlock to get the available physical block.

  Note

  If there is no enough reserved block to remap the bad physical block, the remappedPhyBlock will still points to the original PBA. So we must check the bad block flag to make sure the remapped block is available.

• If the target physical block of the virtual block is non-bad block, add the virtual block into free block list; otherwise, ignore and avoid to use the virtual block.

See also

• Vblock2PblockOfTbsTranslation defines the V2P mapping rule.
• InitAddressMap and RemapBadBlock() defines bad block remapping rule.

Todo:

Check used (neither free nor bad) blocks without updating the BBT.

Definition at line 300 of file address_translation.c.

{
    unsigned int dieNo, phyBlockNo, virtualBlockNo, remappedPhyBlock;

    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        for (virtualBlockNo = 0; virtualBlockNo < USER_BLOCKS_PER_DIE; virtualBlockNo++)
        {
            phyBlockNo       = Vblock2PblockOfTbsTranslation(virtualBlockNo);
            remappedPhyBlock = phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].remappedPhyBlock;
            virtualBlockMapPtr->block[dieNo][virtualBlockNo].bad =
                phyBlockMapPtr->phyBlock[dieNo][remappedPhyBlock].bad;

            virtualBlockMapPtr->block[dieNo][virtualBlockNo].free            = 1;
            virtualBlockMapPtr->block[dieNo][virtualBlockNo].invalidSliceCnt = 0;
            virtualBlockMapPtr->block[dieNo][virtualBlockNo].currentPage     = 0;
            virtualBlockMapPtr->block[dieNo][virtualBlockNo].eraseCnt        = 0;

            // bad block should not be added to free block list
            if (virtualBlockMapPtr->block[dieNo][virtualBlockNo].bad)
            {
                virtualBlockMapPtr->block[dieNo][virtualBlockNo].prevBlock = BLOCK_NONE;
                virtualBlockMapPtr->block[dieNo][virtualBlockNo].nextBlock = BLOCK_NONE;
            }
            else
                PutToFbList(dieNo, virtualBlockNo);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

InitCurrentBlockOfDieMap()

void InitCurrentBlockOfDieMap

(

)

Get a default free block for each die.

Definition at line 333 of file address_translation.c.

{
    unsigned int dieNo, chNo, wayNo;

    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        virtualDieMapPtr->die[dieNo].currentBlock = GetFromFbList(dieNo, GET_FREE_BLOCK_NORMAL);
        if (virtualDieMapPtr->die[dieNo].currentBlock == BLOCK_FAIL)
        {
            // assert(!"[WARNING] There is no free block [WARNING]");
            chNo  = Vdie2PchTranslation(dieNo);
            wayNo = Vdie2PwayTranslation(dieNo);
            xil_printf("[WARNING] There is no free block on Ch %d Way %d (Die %d)!\r\n", chNo, wayNo, dieNo);
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

InitDieMap()

void InitDieMap

(

)

Reset the free block list of each die.

This function currently will be called before the BBT being recovered, in other words, when the function is called, the fw don't know which block is free, which block is bad yet. The fw therefore cannot build the V2P mapping and the free block list.

Definition at line 265 of file address_translation.c.

{
    unsigned int dieNo;

    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        virtualDieMapPtr->die[dieNo].headFreeBlock = BLOCK_NONE;
        virtualDieMapPtr->die[dieNo].tailFreeBlock = BLOCK_NONE;
        virtualDieMapPtr->die[dieNo].freeBlockCnt  = 0;
    }
}

Here is the caller graph for this function:

InitSliceMap()

void InitSliceMap

(

)

Initialize Logical and Virtual Slick Map.

This function simply initialize all the slice addresses in the both map to NONE.

Definition at line 116 of file address_translation.c.

{
    int sliceAddr;
    for (sliceAddr = 0; sliceAddr < SLICES_PER_SSD; sliceAddr++)
    {
        logicalSliceMapPtr->logicalSlice[sliceAddr].virtualSliceAddr = VSA_NONE;
        virtualSliceMapPtr->virtualSlice[sliceAddr].logicalSliceAddr = LSA_NONE;
    }
}

Here is the caller graph for this function:

InvalidateOldVsa()

void InvalidateOldVsa

(

unsigned int

logicalSliceAddr

)

Invalidate the specified virtual page.

Overwriting cannot perform on physical flash cell, so the fw must handle out-of-place update.

This function is used for invalidate the corresponding physical page of the specified logical page, but in case there was no physical page allocated on the logical page before, we should check if the corresponding physical page exists before doing GC on the invalidated physical page.

Parameters

logicalSliceAddr

LSA that specifies the virtual slice to be invalidated.

Definition at line 1083 of file address_translation.c.

{
    unsigned int virtualSliceAddr, dieNo, blockNo;

    virtualSliceAddr = logicalSliceMapPtr->logicalSlice[logicalSliceAddr].virtualSliceAddr;

    if (virtualSliceAddr != VSA_NONE)
    {
        if (virtualSliceMapPtr->virtualSlice[virtualSliceAddr].logicalSliceAddr != logicalSliceAddr)
            return;

        dieNo   = Vsa2VdieTranslation(virtualSliceAddr);
        blockNo = Vsa2VblockTranslation(virtualSliceAddr);

        // unlink
        SelectiveGetFromGcVictimList(dieNo, blockNo);
        virtualBlockMapPtr->block[dieNo][blockNo].invalidSliceCnt++;
        logicalSliceMapPtr->logicalSlice[logicalSliceAddr].virtualSliceAddr = VSA_NONE;

        PutToGcVictimList(dieNo, blockNo, virtualBlockMapPtr->block[dieNo][blockNo].invalidSliceCnt);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

PutToFbList()

void PutToFbList	(	unsigned int	dieNo,
		unsigned int	blockNo
	)

Append the given virtual block to the free block list of its die.

Parameters

dieNo	the die number of the given block.
blockNo	VBN of the specified block.

Definition at line 1161 of file address_translation.c.

{
    if (virtualDieMapPtr->die[dieNo].tailFreeBlock != BLOCK_NONE)
    {
        virtualBlockMapPtr->block[dieNo][blockNo].prevBlock = virtualDieMapPtr->die[dieNo].tailFreeBlock;
        virtualBlockMapPtr->block[dieNo][blockNo].nextBlock = BLOCK_NONE;
        virtualBlockMapPtr->block[dieNo][virtualDieMapPtr->die[dieNo].tailFreeBlock].nextBlock = blockNo;
        virtualDieMapPtr->die[dieNo].tailFreeBlock                                             = blockNo;
    }
    else
    {
        virtualBlockMapPtr->block[dieNo][blockNo].prevBlock = BLOCK_NONE;
        virtualBlockMapPtr->block[dieNo][blockNo].nextBlock = BLOCK_NONE;
        virtualDieMapPtr->die[dieNo].headFreeBlock          = blockNo;
        virtualDieMapPtr->die[dieNo].tailFreeBlock          = blockNo;
    }

    virtualDieMapPtr->die[dieNo].freeBlockCnt++;
}

Here is the caller graph for this function:

ReadBadBlockTable()

void ReadBadBlockTable	(	unsigned int	tempBbtBufAddr[],
		unsigned int	tempBbtBufEntrySize
	)

Read the pages that should contain the bad block table.

The bbt of that die is stored in the LSB page (or pages) of the block specified by the BAD_BLOCK_TABLE_INFO_ENTRY::phyBlock, which is default to 0 in InitAddressMap().

Each block on this die (including the extended blocks), use 1 Byte to store the bad block info, so we have to read TOTAL_BLOCKS_PER_DIE / PAGE_SIZE_IN_BYTES pages from the flash.

Todo:

why ECC and row addr dependency can be turned off ??

Parameters

tempBbtBufAddr	the addresses of the bbt of each die.
tempBbtBufEntrySize	the size of the data and metadata region of a page.

Definition at line 365 of file address_translation.c.

{
    unsigned int tempPage, reqSlotTag, dieNo;
    int loop, dataSize;

    loop     = 0;
    dataSize = DATA_SIZE_OF_BAD_BLOCK_TABLE_PER_DIE;
    tempPage = PlsbPage2VpageTranslation(START_PAGE_NO_OF_BAD_BLOCK_TABLE_BLOCK);

    while (dataSize > 0)
    {
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        {
            reqSlotTag = GetFromFreeReqQ();

            reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
            reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_READ;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_ADDR;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_PHY_ORG;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEcc                = REQ_OPT_NAND_ECC_ON;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEccWarning         = REQ_OPT_NAND_ECC_WARNING_OFF;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
            reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_TOTAL;

            reqPoolPtr->reqPool[reqSlotTag].dataBufInfo.addr = tempBbtBufAddr[dieNo] + loop * tempBbtBufEntrySize;

            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh    = Vdie2PchTranslation(dieNo);
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay   = Vdie2PwayTranslation(dieNo);
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock = bbtInfoMapPtr->bbtInfo[dieNo].phyBlock;
            reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage  = Vpage2PlsbPageTranslation(tempPage);

            SelectLowLevelReqQ(reqSlotTag);
        }

        tempPage++;
        loop++;
        dataSize -= BYTES_PER_DATA_REGION_OF_PAGE;
    }

    xil_printf("[INFO] %s: bbt size: %d pages per die.\r\n", __FUNCTION__, loop);
    SyncAllLowLevelReqDone();
}

Here is the call graph for this function:

Here is the caller graph for this function:

RecoverBadBlockTable()

void RecoverBadBlockTable

(

unsigned int

tempBufAddr

)

Read the bbt from flash and re-create if not exists.

This function is used for checking and recover the bad block table from the flash.

To do this, we have several things to do:

1. Read the flash pages that is used for storing the bbt info

2. Check whether the specific pages contains the bbt info

   a. if bbt info exists, check the bad blocks in this die. b. otherwise, mark the bbt this die should be rebuilt.

3. Rebuilt bbt if needed
   1. read all the blocks in the target dies
   2. determine whether those blocks are bad blocks
   3. update the temp bbt
4. Persist the newly created bbt to the flash

Warning

The fw should not always use same page for storing the BBT.

Todo:

Use bitmap and magic number to record bad blocks and identify BBT

Parameters

tempBufAddr

the base address for buffering the pages that contain the bbt.

Definition at line 664 of file address_translation.c.

{
    unsigned int chNo, wayNo, dieNo, phyBlockNo;
    unsigned int bbtMaker, tempBbtBufBaseAddr, tempBbtBufEntrySize, tempReadBufBaseAddr, tempReadBufEntrySize;
    unsigned int tempBbtBufAddr[USER_DIES];  // buffer addresses for storing the bbt pages
    unsigned int tempReadBufAddr[USER_DIES]; // buffer addresses for finding bad blocks
    unsigned char dieState[USER_DIES];       // whether the bbt of this die should be rebuilt
    unsigned char *bbtTableChecker;

    // data buffer allocation
    tempBbtBufBaseAddr  = tempBufAddr;
    tempBbtBufEntrySize = BYTES_PER_DATA_REGION_OF_PAGE + BYTES_PER_SPARE_REGION_OF_PAGE;
    tempReadBufBaseAddr =
        tempBbtBufBaseAddr + USER_DIES * USED_PAGES_FOR_BAD_BLOCK_TABLE_PER_DIE * tempBbtBufEntrySize;
    tempReadBufEntrySize = BYTES_PER_NAND_ROW;
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        tempBbtBufAddr[dieNo] =
            tempBbtBufBaseAddr + dieNo * USED_PAGES_FOR_BAD_BLOCK_TABLE_PER_DIE * tempBbtBufEntrySize;
        tempReadBufAddr[dieNo] = tempReadBufBaseAddr + dieNo * tempReadBufEntrySize;
    }

    // read the bbt of each die into bbt buffer
    ReadBadBlockTable(tempBbtBufAddr, tempBbtBufEntrySize);

    // check bad block tables
    bbtMaker = BAD_BLOCK_TABLE_MAKER_IDLE;
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        chNo            = Vdie2PchTranslation(dieNo);
        wayNo           = Vdie2PwayTranslation(dieNo);
        bbtTableChecker = (unsigned char *)(tempBbtBufAddr[dieNo]);

        /*
         * Each block on this die use 1 byte to store the bad block info, but only use 1
         * bit to indicate whether that block is a bad block. So here just determine if
         * the bbt exists by checking the first byte.
         */
        if ((*bbtTableChecker == BLOCK_STATE_NORMAL) || (*bbtTableChecker == BLOCK_STATE_BAD))
        {
            xil_printf("[ bad block table of ch %d way %d exists.]\r\n", Vdie2PchTranslation(dieNo),
                       Vdie2PwayTranslation(dieNo));

            dieState[dieNo] = DIE_STATE_BAD_BLOCK_TABLE_EXIST;
            for (phyBlockNo = 0; phyBlockNo < TOTAL_BLOCKS_PER_DIE; phyBlockNo++)
            {
                bbtTableChecker = (unsigned char *)(tempBbtBufAddr[dieNo] + phyBlockNo);

                phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].bad = *bbtTableChecker;
                if (phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].bad == BLOCK_STATE_BAD)
                    pr_info("C/W[%u/%u]: bad block at PBlk %u (0x%x)", chNo, wayNo, phyBlockNo, phyBlockNo);
            }

            xil_printf("[ bad blocks of ch %d way %d are checked. ]\r\n", Vdie2PchTranslation(dieNo),
                       Vdie2PwayTranslation(dieNo));
        }
        else
        {
            xil_printf("[ bad block table of ch %d way %d does not exist.]\r\n", Vdie2PchTranslation(dieNo),
                       Vdie2PwayTranslation(dieNo));
            dieState[dieNo] = DIE_STATE_BAD_BLOCK_TABLE_NOT_EXIST;
            bbtMaker        = BAD_BLOCK_TABLE_MAKER_TRIGGER;
        }
    }

    // Create bbt for those dies whose bbt not found.
    if (bbtMaker == BAD_BLOCK_TABLE_MAKER_TRIGGER)
    {
        FindBadBlock(dieState, tempBbtBufAddr, tempBbtBufEntrySize, tempReadBufAddr, tempReadBufEntrySize);
        SaveBadBlockTable(dieState, tempBbtBufAddr, tempBbtBufEntrySize);
    }

    // bbt initialization done, no need to update the bbt until new bad block found
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        bbtInfoMapPtr->bbtInfo[dieNo].grownBadUpdate = BBT_INFO_GROWN_BAD_UPDATE_NONE;
}

Here is the call graph for this function:

Here is the caller graph for this function:

RemapBadBlock()

void RemapBadBlock

(

)

Try to remap the bad blocks in the main block space.

If the number of user blocks is configured as less than the number of total blocks on each die, there may be some redundant blocks can be used for replacing the bad blocks in the user blocks.

Therefore, this function will sequentially search the redundant (reserved) blocks on each die and try to replace the bad block in the user blocks on that die with the reserved blocks.

Todo:

use array to simplify lun0 and lun1

Definition at line 139 of file address_translation.c.

{
    unsigned int blockNo, dieNo, remapFlag, maxBadBlockCount;
    unsigned int reservedBlockOfLun0[USER_DIES]; // PBA of first reserved block on lun 0
    unsigned int reservedBlockOfLun1[USER_DIES]; // PBA of first reserved block on lun 1
    unsigned int badBlockCount[USER_DIES];       // non-remmappable blocks on this die

    xil_printf("Bad block remapping start...\r\n");

    // view the blocks after user blocks as reserved blocks for remapping
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        reservedBlockOfLun0[dieNo] = USER_BLOCKS_PER_LUN;
        reservedBlockOfLun1[dieNo] = TOTAL_BLOCKS_PER_LUN + USER_BLOCKS_PER_LUN;
        badBlockCount[dieNo]       = 0;
    }

    for (blockNo = 0; blockNo < USER_BLOCKS_PER_LUN; blockNo++)
    {
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        {
            // lun0
            if (phyBlockMapPtr->phyBlock[dieNo][blockNo].bad)
            {
                if (reservedBlockOfLun0[dieNo] < TOTAL_BLOCKS_PER_LUN)
                {
                    // sequentially find a non-bad reserved block to replace the bad user block
                    remapFlag = 1;
                    while (phyBlockMapPtr->phyBlock[dieNo][reservedBlockOfLun0[dieNo]].bad)
                    {
                        reservedBlockOfLun0[dieNo]++;

                        // no available non-bad reserved block
                        if (reservedBlockOfLun0[dieNo] >= TOTAL_BLOCKS_PER_LUN)
                        {
                            remapFlag = 0;
                            break;
                        }
                    }

                    // whether we found a free block to replace the bad block
                    if (remapFlag)
                    {
                        phyBlockMapPtr->phyBlock[dieNo][blockNo].remappedPhyBlock = reservedBlockOfLun0[dieNo];
                        reservedBlockOfLun0[dieNo]++;
                    }
                    else
                    {
                        xil_printf("No reserved block - Ch %d Way %d virtualBlock %d is bad block \r\n",
                                   Vdie2PchTranslation(dieNo), Vdie2PwayTranslation(dieNo), blockNo);
                        badBlockCount[dieNo]++;
                    }
                }
                else
                {
                    xil_printf("No reserved block - Ch %d Way %d virtualBlock %d is bad block \r\n",
                               Vdie2PchTranslation(dieNo), Vdie2PwayTranslation(dieNo), blockNo);
                    badBlockCount[dieNo]++;
                }
            }

            if (LUNS_PER_DIE > 1)
            {
                // lun1
                if (phyBlockMapPtr->phyBlock[dieNo][blockNo + TOTAL_BLOCKS_PER_LUN].bad)
                {
                    if (reservedBlockOfLun1[dieNo] < TOTAL_BLOCKS_PER_DIE)
                    {
                        remapFlag = 1;
                        while (phyBlockMapPtr->phyBlock[dieNo][reservedBlockOfLun1[dieNo]].bad)
                        {
                            reservedBlockOfLun1[dieNo]++;
                            if (reservedBlockOfLun1[dieNo] >= TOTAL_BLOCKS_PER_DIE)
                            {
                                remapFlag = 0;
                                break;
                            }
                        }

                        if (remapFlag)
                        {
                            phyBlockMapPtr->phyBlock[dieNo][blockNo + TOTAL_BLOCKS_PER_LUN].remappedPhyBlock =
                                reservedBlockOfLun1[dieNo];
                            reservedBlockOfLun1[dieNo]++;
                        }
                        else
                        {
                            xil_printf("No reserved block - Ch %x Way %x virtualBlock %d is bad block \r\n",
                                       Vdie2PchTranslation(dieNo), Vdie2PwayTranslation(dieNo),
                                       blockNo + USER_BLOCKS_PER_LUN);
                            badBlockCount[dieNo]++;
                        }
                    }
                    else
                    {
                        xil_printf("No reserved block - Ch %x Way %x virtualBlock %d is bad block \r\n",
                                   Vdie2PchTranslation(dieNo), Vdie2PwayTranslation(dieNo),
                                   blockNo + USER_BLOCKS_PER_LUN);
                        badBlockCount[dieNo]++;
                    }
                }
            }
        }
    }

    xil_printf("Bad block remapping end\r\n");

    maxBadBlockCount = 0;
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        xil_printf("[WARNING!!!] There are %d bad blocks on Ch %d Way %d.\r\n", badBlockCount[dieNo],
                   Vdie2PchTranslation(dieNo), Vdie2PwayTranslation(dieNo));
        if (maxBadBlockCount < badBlockCount[dieNo])
            maxBadBlockCount = badBlockCount[dieNo];
    }

    mbPerbadBlockSpace = maxBadBlockCount * USER_DIES * MB_PER_BLOCK;
}

Here is the caller graph for this function:

SaveBadBlockTable()

void SaveBadBlockTable	(	unsigned char	dieState[],
		unsigned int	tempBbtBufAddr[],
		unsigned int	tempBbtBufEntrySize
	)

Persist the newly created bbt for those dies whose bbt not exists.

Similar to ReadBadBlockTable, but now we have to write the bbt to the pages.

Note

The bbt should be saved at lsb pages.

Bug:

why dataSize++ ?? tempPage++ ?

Parameters

dieState	the flags that indicate whether the bbt of that die should be rebuilt.
tempBbtBufAddr	the addresses of the bbt of each die.
tempBbtBufEntrySize	the size of the data and metadata region of a page.

Definition at line 563 of file address_translation.c.

{
    unsigned int dieNo, reqSlotTag;
    int loop, dataSize, tempPage;

    loop     = 0;
    dataSize = DATA_SIZE_OF_BAD_BLOCK_TABLE_PER_DIE;
    tempPage =
        PlsbPage2VpageTranslation(START_PAGE_NO_OF_BAD_BLOCK_TABLE_BLOCK); // bad block table is saved at lsb pages

    while (dataSize > 0)
    {
        for (dieNo = 0; dieNo < USER_DIES; dieNo++)
            if ((dieState[dieNo] == DIE_STATE_BAD_BLOCK_TABLE_NOT_EXIST) ||
                (dieState[dieNo] == DIE_STATE_BAD_BLOCK_TABLE_UPDATE))
            {
                /* before writing the bbt to flash, we should do erase first. */
                if (loop == 0)
                {
                    reqSlotTag = GetFromFreeReqQ();

                    reqPoolPtr->reqPool[reqSlotTag].reqType              = REQ_TYPE_NAND;
                    reqPoolPtr->reqPool[reqSlotTag].reqCode              = REQ_CODE_ERASE;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr      = REQ_OPT_NAND_ADDR_PHY_ORG;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat = REQ_OPT_DATA_BUF_NONE;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck =
                        REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
                    reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace = REQ_OPT_BLOCK_SPACE_TOTAL;

                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh  = Vdie2PchTranslation(dieNo);
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay = Vdie2PwayTranslation(dieNo);
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock =
                        bbtInfoMapPtr->bbtInfo[dieNo].phyBlock;
                    reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage = 0; // dummy

                    SelectLowLevelReqQ(reqSlotTag);
                }

                reqSlotTag = GetFromFreeReqQ();

                reqPoolPtr->reqPool[reqSlotTag].reqType                       = REQ_TYPE_NAND;
                reqPoolPtr->reqPool[reqSlotTag].reqCode                       = REQ_CODE_WRITE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.dataBufFormat          = REQ_OPT_DATA_BUF_ADDR;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandAddr               = REQ_OPT_NAND_ADDR_PHY_ORG;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEcc                = REQ_OPT_NAND_ECC_ON;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.nandEccWarning         = REQ_OPT_NAND_ECC_WARNING_OFF;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.rowAddrDependencyCheck = REQ_OPT_ROW_ADDR_DEPENDENCY_NONE;
                reqPoolPtr->reqPool[reqSlotTag].reqOpt.blockSpace             = REQ_OPT_BLOCK_SPACE_TOTAL;

                reqPoolPtr->reqPool[reqSlotTag].dataBufInfo.addr =
                    tempBbtBufAddr[dieNo] + loop * tempBbtBufEntrySize;

                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalCh    = Vdie2PchTranslation(dieNo);
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalWay   = Vdie2PwayTranslation(dieNo);
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalBlock = bbtInfoMapPtr->bbtInfo[dieNo].phyBlock;
                reqPoolPtr->reqPool[reqSlotTag].nandInfo.physicalPage  = Vpage2PlsbPageTranslation(tempPage);

                SelectLowLevelReqQ(reqSlotTag);
            }

        loop++;
        dataSize++;
        dataSize -= BYTES_PER_DATA_REGION_OF_PAGE;
    }

    SyncAllLowLevelReqDone();

    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        if (dieState[dieNo] == DIE_STATE_BAD_BLOCK_TABLE_NOT_EXIST)
            xil_printf("[ bad block table of Ch %d Way %d is saved. ]\r\n", dieNo % USER_CHANNELS,
                       dieNo / USER_CHANNELS);
}

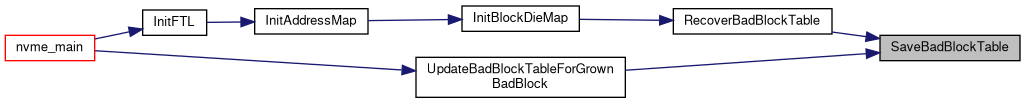

Here is the call graph for this function:

Here is the caller graph for this function:

UpdateBadBlockTableForGrownBadBlock()

void UpdateBadBlockTableForGrownBadBlock

(

unsigned int

tempBufAddr

)

Update the bad block table and persist to the specified block.

A little bit similar to FindBadBlock(), but this function use the bad block flag to mark bad blocks, instead of reading the bad block marks.

Parameters

tempBufAddr

the base address of the bad block tables.

Definition at line 1254 of file address_translation.c.

{
    unsigned int dieNo, phyBlockNo, tempBbtBufBaseAddr, tempBbtBufEntrySize;
    unsigned int tempBbtBufAddr[USER_DIES];
    unsigned char dieState[USER_DIES];
    unsigned char *bbtUpdater;

    // data buffer allocation
    tempBbtBufBaseAddr  = tempBufAddr;
    tempBbtBufEntrySize = BYTES_PER_DATA_REGION_OF_PAGE + BYTES_PER_SPARE_REGION_OF_PAGE;
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
        tempBbtBufAddr[dieNo] =
            tempBbtBufBaseAddr + dieNo * USED_PAGES_FOR_BAD_BLOCK_TABLE_PER_DIE * tempBbtBufEntrySize;

    // create new bad block table
    for (dieNo = 0; dieNo < USER_DIES; dieNo++)
    {
        if (bbtInfoMapPtr->bbtInfo[dieNo].grownBadUpdate == BBT_INFO_GROWN_BAD_UPDATE_BOOKED)
        {
            for (phyBlockNo = 0; phyBlockNo < TOTAL_BLOCKS_PER_DIE; phyBlockNo++)
            {
                bbtUpdater = (unsigned char *)(tempBbtBufAddr[dieNo] + phyBlockNo);

                if (phyBlockNo != bbtInfoMapPtr->bbtInfo[dieNo].phyBlock)
                    *bbtUpdater = phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].bad;
                else
                    *bbtUpdater = BLOCK_STATE_NORMAL;
            }

            dieState[dieNo] = DIE_STATE_BAD_BLOCK_TABLE_UPDATE;
        }
        else
            dieState[dieNo] = DIE_STATE_BAD_BLOCK_TABLE_HOLD;
    }

    // update bad block tables in flash
    SaveBadBlockTable(dieState, tempBbtBufAddr, tempBbtBufEntrySize);
}

Here is the call graph for this function:

Here is the caller graph for this function:

UpdatePhyBlockMapForGrownBadBlock()

void UpdatePhyBlockMapForGrownBadBlock	(	unsigned int	dieNo,
		unsigned int	phyBlockNo
	)

Mark the given physical block bad block and update the bbt later.

Parameters

dieNo	the die number of the given block.
phyBlockNo	the physical address of the block to be marked as bad block.

Definition at line 1240 of file address_translation.c.

{
    phyBlockMapPtr->phyBlock[dieNo][phyBlockNo].bad = BLOCK_STATE_BAD;
    bbtInfoMapPtr->bbtInfo[dieNo].grownBadUpdate    = BBT_INFO_GROWN_BAD_UPDATE_BOOKED;
}

Here is the caller graph for this function:

Variable Documentation

bbtInfoMapPtr

P_BAD_BLOCK_TABLE_INFO_MAP bbtInfoMapPtr

Definition at line 59 of file address_translation.c.

logicalSliceMapPtr

P_LOGICAL_SLICE_MAP logicalSliceMapPtr

Definition at line 54 of file address_translation.c.

mbPerbadBlockSpace

unsigned int mbPerbadBlockSpace

Definition at line 62 of file address_translation.c.

phyBlockMapPtr

P_PHY_BLOCK_MAP phyBlockMapPtr

Definition at line 58 of file address_translation.c.

sliceAllocationTargetDie

unsigned char sliceAllocationTargetDie

Definition at line 61 of file address_translation.c.

virtualBlockMapPtr

P_VIRTUAL_BLOCK_MAP virtualBlockMapPtr

Definition at line 56 of file address_translation.c.

virtualDieMapPtr

P_VIRTUAL_DIE_MAP virtualDieMapPtr

Definition at line 57 of file address_translation.c.

virtualSliceMapPtr

P_VIRTUAL_SLICE_MAP virtualSliceMapPtr

Definition at line 55 of file address_translation.c.
